Wipers

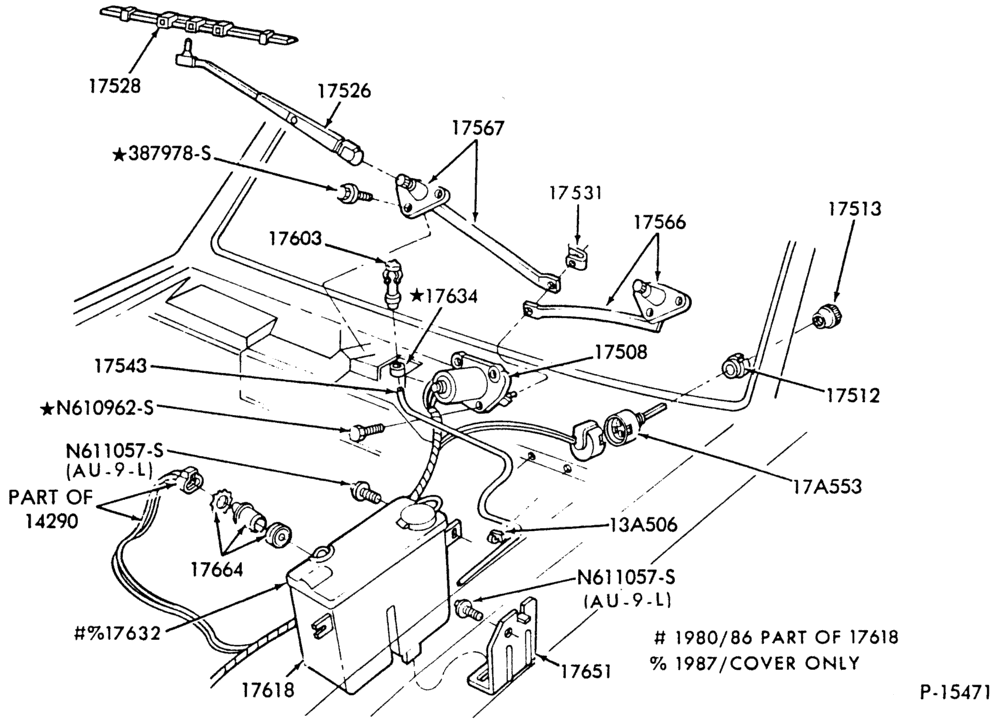

Diagram, positions and parts list for the selected catalog group.

24 parts

Wipers

Loading diagram image...

Parts list

24 parts

— Part

—

—

13A506 Part

17A553 Part

14290 Cable harness

E7HZ-14290-B WIRE ASSY. (DASH PANEL TO HEADLAMP JUNCTION)

14290 Cable harness

E7HZ-14290-A WIRE ASSY. (DASH PANEL TO HEADLAMP JUNCTION)

14290 Cable harness

E8HZ-14290-F WIRE ASSY. (DASH PANEL TO HEADLAMP JUNCTION)

17508 Wiper drive motor

E7TZ-17508-A MOTOR ASSY. (WINDSHIELD WIPER) APPLICATION CHART

17526 Wiper arm

E7TZ-17526-N THRU 17527 - ARM ASSY. (WINDSHIELD WIPER PIVOT)

17543 HOSE (WINDSHIELD WIPER-BULK)-ALSO REFER TO GOUP 2269

17543 HOSE (WINDSHIELD WIPER-BULK)-ALSO REFER TO GOUP 2269

17543 HOSE (WINDSHIELD WIPER-BULK)-ALSO REFER TO GOUP 2269

17543 HOSE (WINDSHIELD WIPER-BULK)-ALSO REFER TO GOUP 2269

17543 HOSE (WINDSHIELD WIPER-BULK)-ALSO REFER TO GOUP 2269

17566 Wiper actuator rod

E7TZ-17566-A THRU 17567 - ARM AND PIVOT SHAFT ASSY. (WINDSHIELD WIPER MOUNTING)

17567 THRU 17567 - ARM AND PIVOT SHAFT ASSY. (WINDSHIELD WIPER MOUNTING)

17603 Washer nozzle

E0TZ-17603-A JET ASSY. (WINDSHIELD WASHER)

17618 Washer tank

F1HZ-17618-A RESERVOIR (WINDSHIELD WASHER)

17618 Washer tank

E4HZ-17618-B RESERVOIR (WINDSHIELD WASHER)

17632 Window washer tank cap

E3SZ-17632-A COVER (WINDSHIELD WASHER RESERVOIR)

17651 BRACKET (WINDSHIELD WASHER RESERVOIR MOUNTING)

17664 Headlight washer pump

E0AZ-17664-A PUMP (WINDSHIELD WASHER)

17664 Headlight washer pump

E5TZ-17664-B PUMP (WINDSHIELD WASHER)
