1 Suspension stabilizer mounting bracket
REAR LOWER ARM for Honda Odyssey EX 2001 Malta
Browse this catalog section using the category tree and the links below.

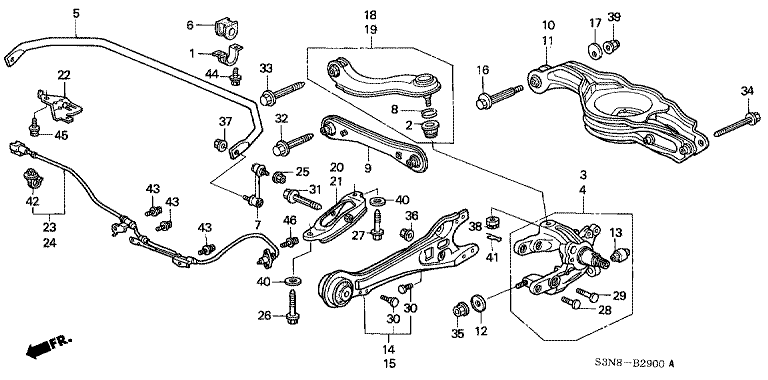

REAR LOWER ARM
Diagram, positions and parts list for the selected catalog group.
Loading diagram image...
Parts list
47 parts See prices
2 Part
3 Steering knuckle (set)
4 Steering knuckle (set)
5 Anti-roll bar
6 Stabilizer bush
7 STABILIZER LINK
8 Part
9 ARM COMP. A, RR. LOWER
10 CONTROL ARM
11 CONTROL ARM
12 WASHER, LOWER ARM
13 BUSH B, RR. LOWER ARM
14 ARM ASSY., R. RR. TRAILING
15 ARM ASSY., L. RR. TRAILING
16 BOLT, LOWER ARM ADJUSTING
17 PLATE, CAM
18 CONTROL ARM
19 CONTROL ARM
20 BRACKET, R. RR. TRAILING ARM (LEFT HAND SIDE)
21 BRACKET, L. RR. TRAILING ARM (RIGHT HAND SIDE)
22 BRACKET, COUPLER
23 SENSOR ASSY., R. RR.
24 SENSOR ASSY., L. RR.
25 Part
26 BOLT, TRAILING ARM BRACKET, 12X69
27 BOLT, TRAILING ARM BRACKET, 12X49.5
28 BOLT A, TRAILING ARM (10X35)
29 BOLT B, TRAILING ARM (10X45)
30 BOLT, TRAILING, 8X19
31 BOLT, SELF-LOCK, 12X84
32 BOLT, LOWER ARM
33 BOLT B, SHOCK ABSORBER BRACKET
34 BOLT, SHOCK ABSORBER LOCK, 12X88
35 NUT, SELF-LOCK, 12MM (SATO RASHI)
36 NUT, TRAILING ARM, 10MM
37 NUT, SHOCK ABSORBER FLANGE (10MM)
38 NUT, UPPER ARM
39 NUT, SELF-LOCK, 12MM (NYLON)
40 WASHER, TRAILING, 12MM
41 Part
42 Part
42 Part
43 Part
44 Part
45 Part
46 Part
