FUEL TANK(2) for Honda Pilot EX-L 2013 Liberia
Browse this catalog section using the category tree and the links below.

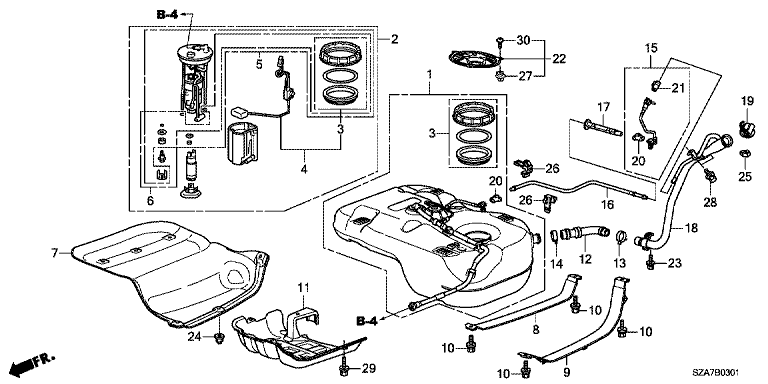

FUEL TANK(2)
Diagram, positions and parts list for the selected catalog group.
Loading diagram image...
Parts list
30 parts See prices
2 Fuel pump assembly
3 NUT & PACKING SET, FUEL LOCK
4 Fuel level sensor
5 STRAINER SET, FUEL
6 REGULATOR ASSY., PRESSURE
7 PROTECTOR, FUEL TANK
8 Fuel tank tension strap
9 Fuel tank tension strap
10 BOLT-WASHER, 12X35
11 GUARD, FUEL TANK
12 TUBE COMP., FILLER NECK
13 CLIP, FILLER TUBE (28.6MM)
14 Part
15 TUBE COMP., VENT RETURN
16 PIPE, VENT RETURN
17 CLIP ASSY., VENT RETURN
18 Fuel tube
19 CAP ASSY., FUEL FILLER
20 Part
21 Part
22 CAP ASSY., FLOOR MAINTENANCE HOLE
23 Part
24 NUT, CAP, 6MM
25 Part
26 CLIP, FUEL PIPE
27 Part
28 Part
29 Fastening bolt
30 Part
